Duende BFF Security Framework V3 Release Candidate 1

  • A profile photo of Khalid Abuhakmeh in black and white
Two blue circles

Today, we're happy to bring you the first Release Candidate for the next version of
the Duende Backend-for-Frontend (BFF) Security Framework V3.

BFF (Backend-For-Frontend) solves security and development challenges for client-side developers using SPA frameworks
like React, Angular, VueJs or Blazor by providing a dedicated backend to manage OAuth/OIDC interactions while enforcing
a "no tokens in the browser" policy.

In this blog post, we’ll look at some new functionality and cover some aspects you should be aware of when upgrading.

What's new?

Duende BFF Security Framework v3.0 is a significant release that includes:

  • .NET 9 support
  • Blazor support
  • Several fixes and improvements

.NET 9 support

Duende BFF Security Framework v3.0 is designed for both .NET 8 (Long-Term Support) and .NET 9, offering improved
performance, new features, and enhanced capabilities with ASP.NET Core hosting improvements, AI building blocks, and
more.

Blazor support

Microsoft's Blazor framework enables developers to build interactive web applications using C# and .NET, offering both
server-side and client-side hosting models. However, implementing authentication in Blazor presents certain challenges.
For example, managing authentication states consistently can be complex in split-mode scenarios, where rendering is
divided between server and client.

To address these issues, the new Backend for Frontend (BFF) framework provides comprehensive support for authentication
in Blazor applications. The BFF pattern centralizes authentication logic on the server side, creating a secure
environment for managing user identities and sessions. As with other browser-based applications, the actual
authentication logic is handled on the server by the Duende BFF Security Framework. On the client, the BFF ensures that
the authentication state is in sync with the session on the server.

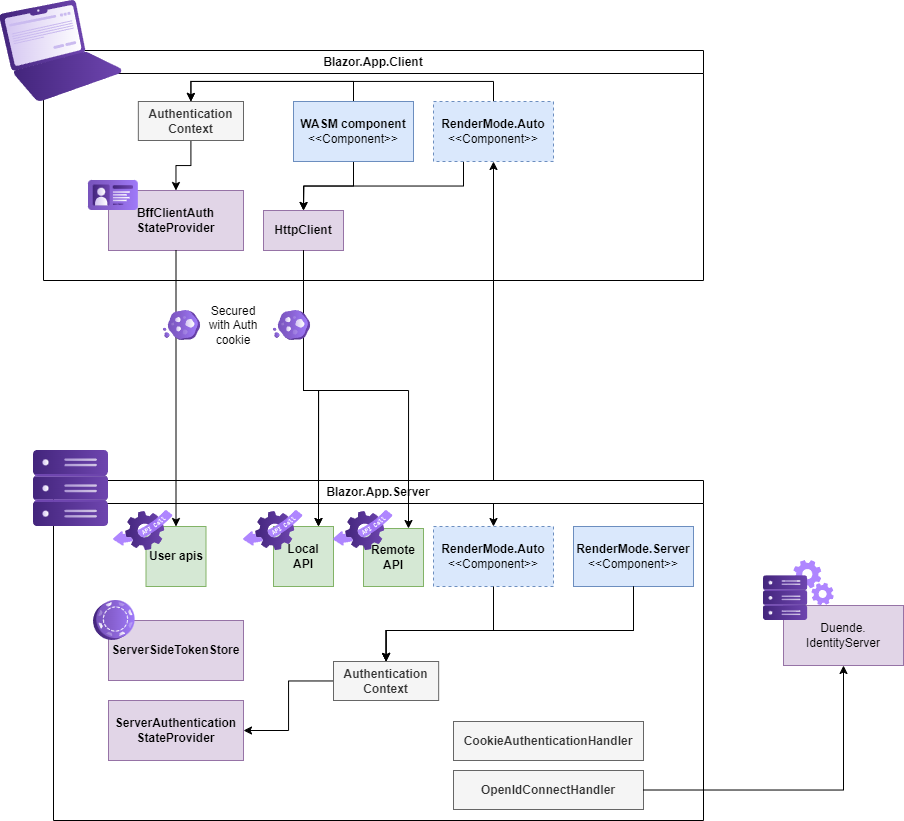

The following diagram shows how the BFF’s Blazor support works:

BFF Blazor support (v3)

Blazor supports multiple rendering modes, which provides a lot of flexibility, but can also cause complexities when it
comes to authentication. Especially in RenderMode.Auto, which makes a component start as a server-rendered component,
until the web assembly component is downloaded and it takes over rendering. The BFF security framework uses a different
Server and Client AuthenticationStateProvider, to unify the authentication experience.

Fixes and improvements

  • Prevent log warning when expected duplicate key constraint is
    violated. #1763
  • Signout on refresh token expire #1803
  • Bumped version of Duende.AccessTokenManagement to 3.2.0 #1804

Breaking changes

  • Bff YARP proxy improvements #1734 (With many thanks
    to @ArturDorochowicz for bringing this issue to our attention and providing a
    solution direction)
  • AddAddEntityFrameworkServerSideSessionsServices in
    Duende.Bff.EntityFramework/Configuration/BffBuilderExtensions.cs #1695
  • Async GetUserClaims, GetManagementClaims #1702
  • Consolidating ClaimRecord and ClaimLite #1697

Upgrading from V2 to V3

If you rely on the default extension methods for wiring up the BFF in your applications, V3 should be a drop-in
replacement. There are, however, a few changes to be aware of.

Migrating from custom implementations of IHttpMessageInvokerFactory

In Duende.BFF V2, there was an interface called IHttpMessageInvokerFactory. This was responsible for creating and
wiring up YARP’s HttpMessageInvoker. This interface has been removed in favor of YARP’s IForwarderHttpClientFactory.

Read more about this change in the release notes.

Migrating from custom implementations IHttpTransformerFactory

The IHttpTransformerFactory was a way to globally configure the YARP transform pipeline, for example, to replace
defaults or to configure transforms for a single route.

In V3, the way the default endpoints.MapRemoteBffApiEndpoint() method builds up the YARP transform has been simplified
significantly. Most of the logic has been pushed down to the AccessTokenRequestTransform.

Read more about this change in the release notes.

Removed method RemoteApiEndpoint.Map(localpath, apiAddress).

The Map method was no longer needed as most of the logic had been moved to the MapRemoteBffApiEndpoint and the
DefaultTransformers. The map method also wasn't very explicit about what it did and a number of test scenarios tried
to verify if it wasn't called wrongly. You are now expected to call the method MapRemoteBffApiEndpoint. This method
now has a nullable parameter that allows you to inject your own transformers.

AccessTokenRetrievalContext properties are now typed

The LocalPath and ApiAddress properties used to be string, but are now typed:

  • LocalPath is now a PathString
  • ApiAddress is now a Uri

If you rely on these, for example for implementing a custom IAccessTokenRetriever, you should adjust their usage
accordingly.

AddAddEntityFrameworkServerSideSessionsServices has been renamed

If you used the method AddAddEntityFrameworkServerSideSessionsServices() in your code, replace it with the corrected
AddEntityFrameworkServerSideSessionsServices().

State provider polling interval options have been split into separate options for WebAssembly and Server

If you used BffBlazorOptions.StateProviderPollingInterval or BffBlazorOptions.StateProviderPollingDelay to configure
different polling settings, you should now consider if this same setting applies to either Server, WASM or both. Set the
appropriate properties accordingly.

Let us know your experience!

We’re excited with this release, ramping up for a
full Duende BFF Security Framework V3 release in the coming weeks.

For more technical information about this release, please visit
our Release Notes page on
our Products repository. If you’re upgrading to the BFF Security
Framework V3 release candidate, let us know how it goes!
